Advanced Storage & Camping System for Toyota 4Runner 4th/5th Gen (2-Row Seating)
$990
Pay in full or 4 interest-free payments of $247
- Ideal fit to Toyota 4Runner 4th and 5th (2-row seating without an OEM Rear Cargo Deck). We don’t have many photos of the 4th generation, but the products are nearly identical in both appearance and construction. Please ensure you select the correct version. Installs in preexisting holes with bolts. No drilling. Organize your trunk with ease!
- If you have a different 4Runner version, check these options. Systems fit 5th gen 2-row seating with an OEM Rear Cargo Deck, 3rd row seating and 3rd row removed.
- If you want to sleep, add sleeping platforms provide you with a flat floor (even if no seats removed). If you remove the car seat bottom cushion (removing them is very easy, just unscrew the 4 bolts) of the 2-row seating consider hinged extensions for platforms to make your sleeping surface even longer.
- Choose from a 50/50 split, 60/40 (ideal for solo mode), or one large 100% drawer – whatever fits your needs best.
- Choose from 5" (for minimalists), 7" (an optimal one), or 10" (max capacity and max sleeping area) heights.
- The inner deep of any drawer is 33". Huge storage capacity.
- Heavy-duty slides support up to 150 lbs on the entire surface of the drawer even if it is fully extended. If it's a 100% drawer, it holds up to 250 lbs.
Customize your drawer system!
Customize your drawer system!

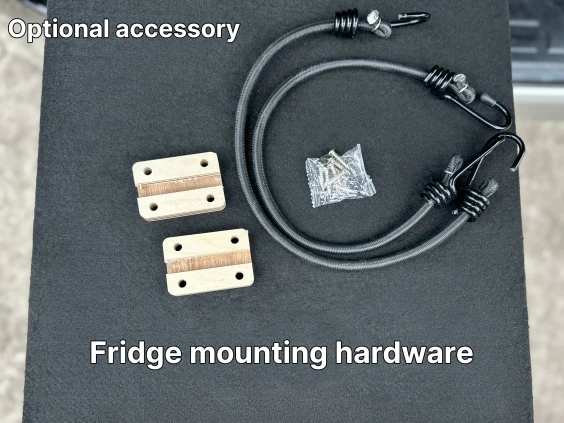

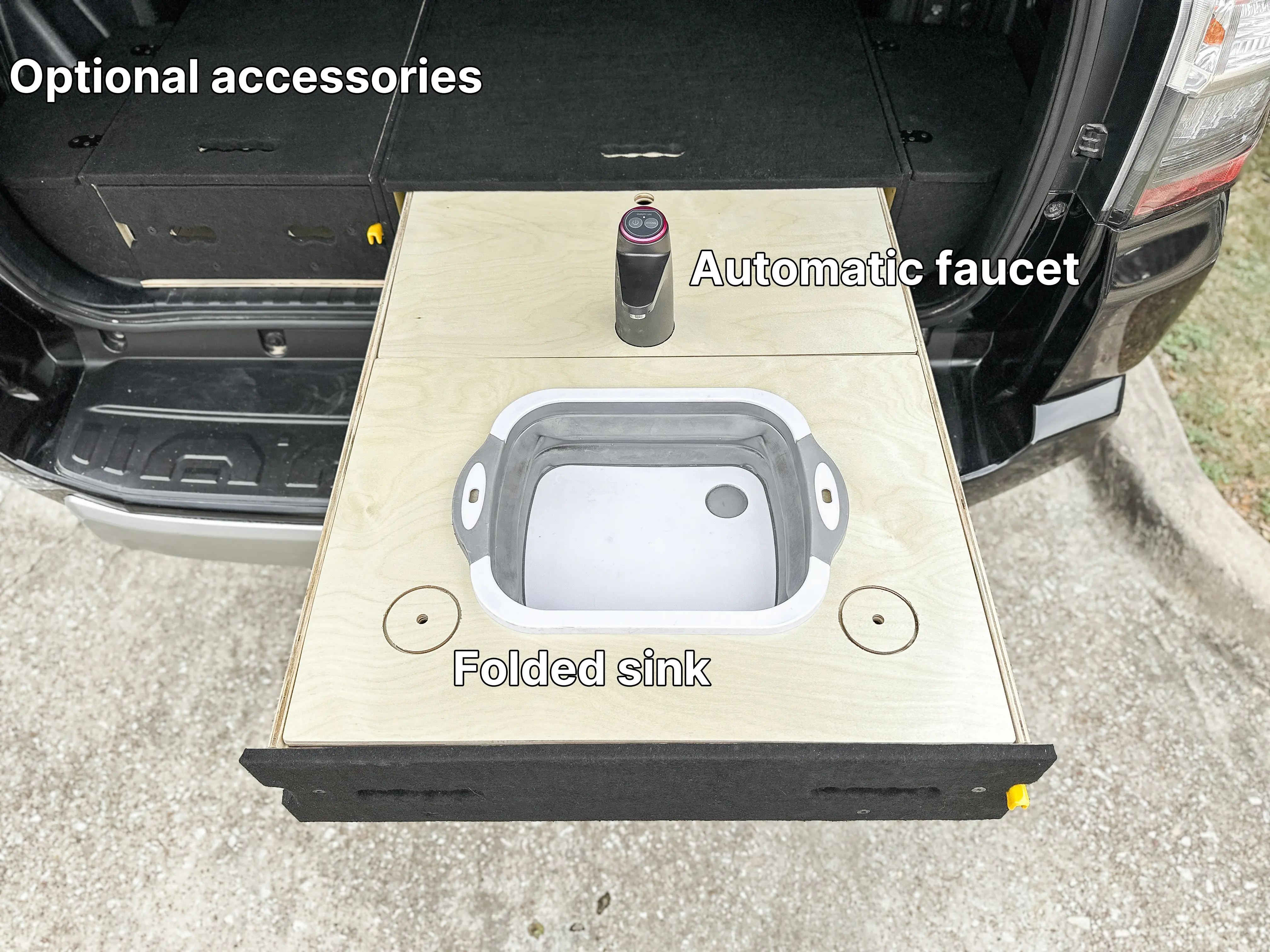

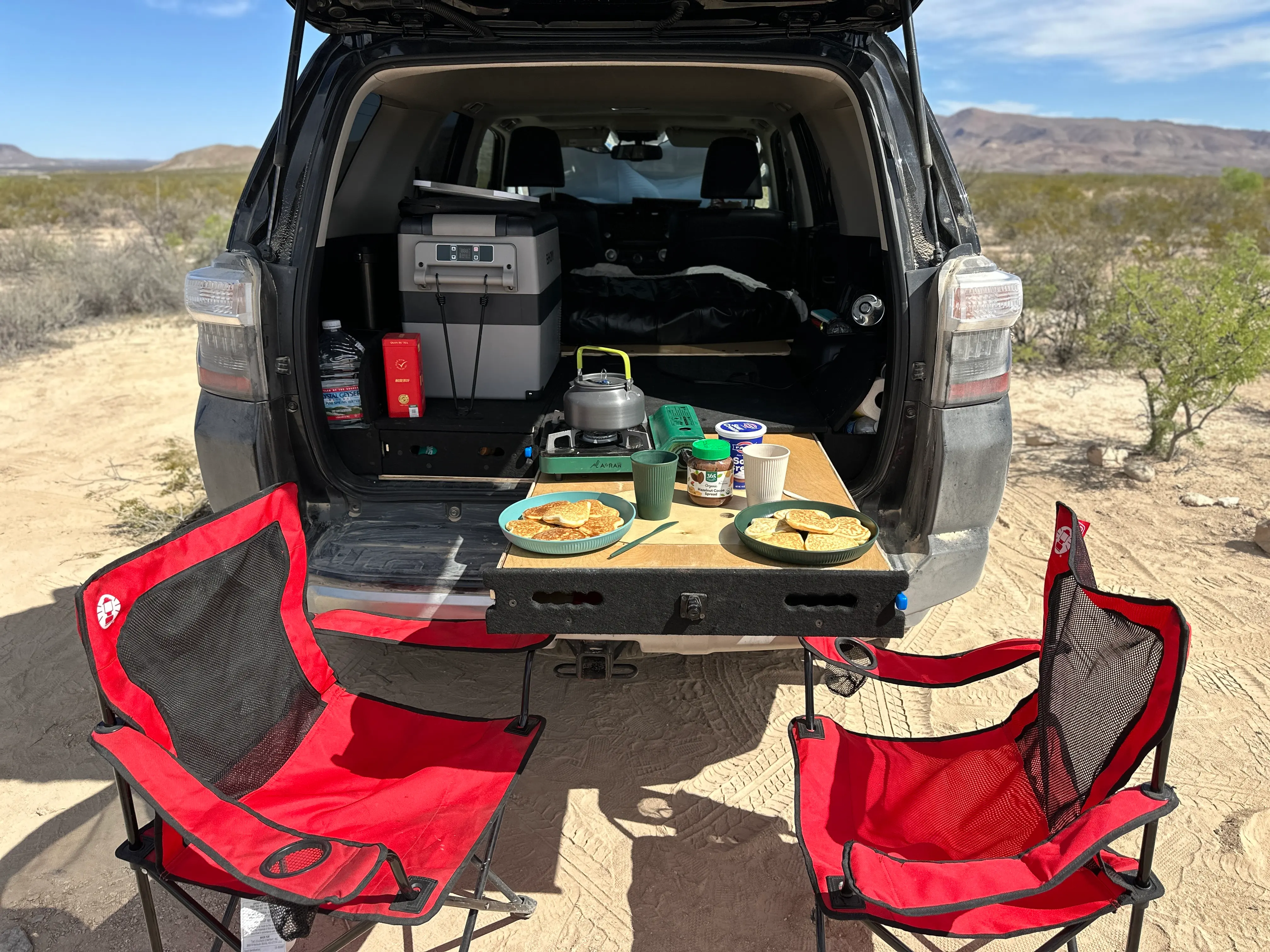

- Adjust the system for your needs and add more accessories for ultimate convenience. Add a table set, dividers, a sink, and a faucet for camp cooking, dividers for drawers, light bars, and a fridge mounting hardware. Choose from waterproof varnish or black carpet covering.

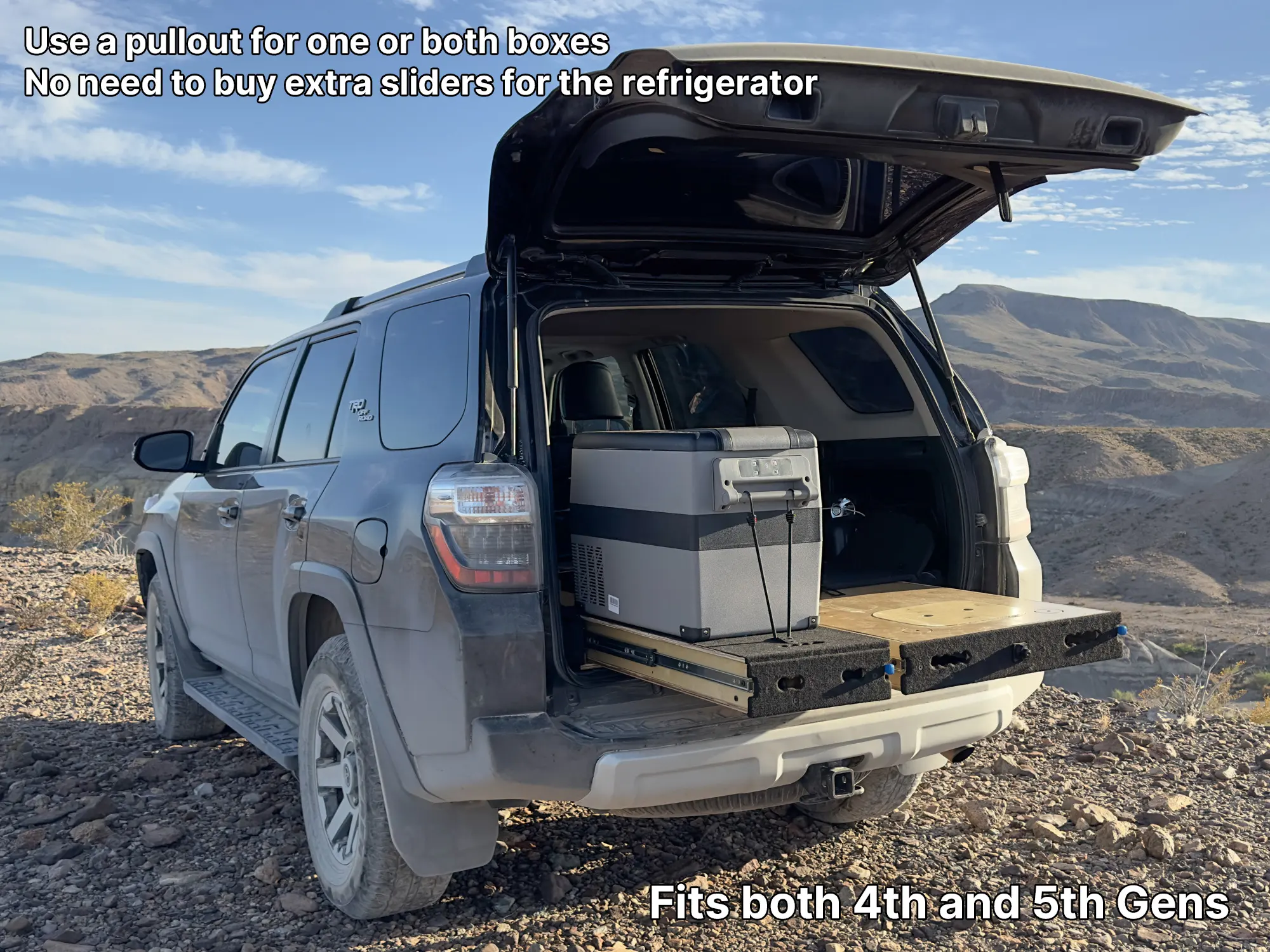

- All drawers tops can be used as pull-out platforms. Each top cover slides out effortlessly, making it ideal for refrigerators or for quick access to the stuff. A very handy feature for a huge trunk. If you don’t need the pullout option, you can secure the top cover and add a lock if necessary.
- Provides you with additional noise isolation of the trunk floor. 100% waterproof because the base is plywood with a lacquer finish.
- For maximum customization go to The Customizable Storage & Camping System for Toyota 4Runner 4th/5th Gen there you can order several drawers, put them in two rows and customize every parameter. Here, you can configure every feature to your preference. Choose from one, two, three, or more drawers and customize them to suit your needs.
- Load capacity up to 200 lbs on top of each drawer, so if you have a split system you can easily put 400 lbs (if you have 100% drawer, due to the large width you can load the top to 200 lbs with limiter installed).
- Find detailed dimensions at the bottom of this page.
- Every inch is carefully designed by engineers in collaboration with owners. Over 200 installations completed. We have created a highly reliable, lightweight, and versatile installation system. No squeaks, no rattles.
- Made with 3d scanner. American-made, Texas. Forum 4Runner (https://www.toyota-4runner.org) sponsors.
- The affordable price is due to its clever design and modern production.
- With our sleeping platforms, you get a huge sleeping area. Sleep like in a comfortable hotel. Just fold down the seat and install them in 3 minutes. You get an average of 53" * 70" (5" and 7" drawers without extensions) with the seats folded down and up to 60" * 83" (10" drawer) if you install extensions and remove the 2nd row car seat cushions. Choose 10" drawer for even more space. In this case, the unit becomes flush with the sides of the trunk, which takes up a lot of space and you will get the maximum flat floor.
- You’ll also get large side compartments with hinged lids that provide convenient storage and give the finish an aesthetic look. As OEM part.
- The product comes partially assembled for safe shipping. Assembly is quick and straightforward – just connect the parts in 10-15 minutes. We include illustrated instructions and all necessary fastening gear.
Free shipping
Made in the USA
Custom design
Have a question? Ask our expert! (866) 665-1911
- Full Product Height: 5.7" or 7" or 10.6"
- Weight: approximately 70 – 100 lbs
- Sleeping area: from 53" * 70" (5" and 7" drawers without extensions) to almost 60" * 82" (10" drawer with extensions) depending on the configuration
- Maximum Load Capacity on Drawer: up to 150 lbs (on the entire surface of each drawer even if it is fully extended. 100% drawer holds up to 250 lbs)
Maximum Load Capacity on Top of the Storage System: up to 200 lbs on top of each drawer, a split system holds up to 400 lbs (100% drawer holds up to 200 lbs with limiter installed)
Drawer Dimensions:
- Inner Drawer Depth: 33" (for all sizes)
- Inner Drawer Height:
- 3.8" for the 5.7" system
- 5.5" for the 7" system
- 9" for the 10.6" system

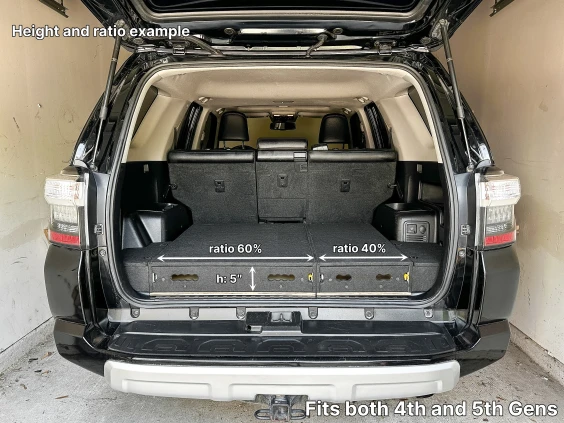

Width Ratio and Dimensions:
- 40% ratio: outer width 14.9", inner drawer width 11.5"
- 50% ratio: outer width 20.5", inner drawer width 17.2"
- 60% ratio: outer width 26.2", inner drawer width 22.9"
- 100% ratio: outer width 41.1", inner drawer width 37.8"
The Storage and Camping System consists of 1/2 cargo drawers (depending on your choice). Sleeping platforms, extensions, dividers, locks, lighting, tables, a sink, a faucet, and fridge mounting hardware are not included but are available as optional accessories. The product is delivered in a ready-to-assemble format, with essential components pre-assembled to minimize the risk of shipping damage, which is common with fully assembled units. The assembly process is straightforward, and all necessary tools are included.
Fitting colors, parts, and surfaces may slightly differ from photos
As with any handcrafted item, you may notice slight imperfections or blemishes, but they won’t affect performance.
Factory and aftermarket cargo mats for the trunk floor and seat backs may interfere with product installation and functionality.
If the product feels too tight or doesn’t fit properly, check the mats. Adjust, remove, or trim them slightly to preserve their use without compromising the installation of our product.
We continuously update our products, so they may vary from what you’ve seen on social media. You will receive the product displayed on this page.
Free shipping in the mainland USA. 50% discount for shipping to Alaska, Hawaii, and Canada. We’re shipping worldwide. Price and shipping options vary. Please email for more information help@wheelsfeels.com. If you want to return the unit for any reason you can do that within seven (7) days after the parcel arrives. All returned items must be in new condition. Read more here. For damaged products, please check our warranty policy. 1-year warranty from manufacturing defects.
